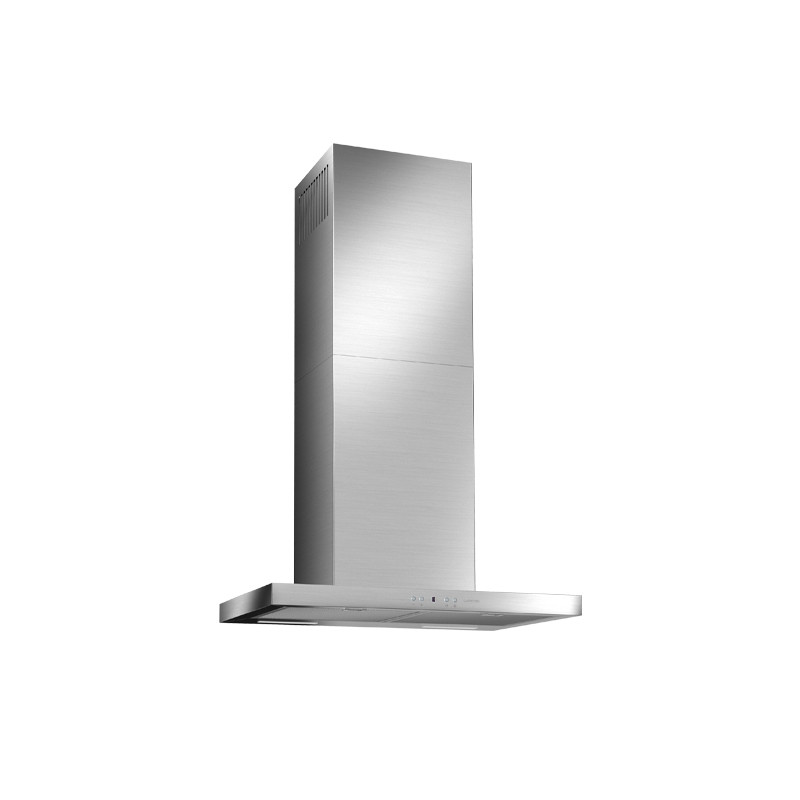

LAPETEK JONA Slim-X1 60
60 cm, (EC) wall stainless steel In stock
JONA SLIM 60 ja 90-X – JONA SLIM 60 ja 90-X - linear kitchen hood for external motors
The LAPETEK JONA SLIM-X model, which controls the top extractor, has been renewed both technically and visually. You can choose the model that controls the traditional AC or newer energy EC motor. The slim, even more trendy Slim design guarantees a timeless...
Accessories and Cleaners
Product Details
JONA SLIM 60 ja 90-X – JONA SLIM 60 ja 90-X - linear kitchen hood for external motors
The LAPETEK JONA SLIM-X model, which controls the top extractor, has been renewed both technically and visually. You can choose the model that controls the traditional AC or newer energy EC motor. The slim, even more trendy Slim design guarantees a timeless look to suit both modern and more traditional kitchens. The finished streamlined look is accentuated by the uniform narrower design of the front panel and flue. Available in white, stainless steel and black.
The lights of the cooker hood have been moved to the rear edge of the hood and their power is dimensioned to give excellent light to the entire working area beneath. Correspondingly, the suction area now extends to the front edge, allowing the steam to be directed more efficiently into the cooker hood. The suction power is mainly determined by the power of the external motor, the diameter and straightness of the flues and the supply of replacement air.
JONA SLIM models are available in both 60 cm and 90 cm wide wall-mounted models and 90 cm wide island models. All models and color options are available with their own motor, in addition to which wall models are available with external motor control (for X1-AC and EC motors), humid room enhancement (for X2-AC and EC motors) and valve control for apartment buildings (X3).
Easy-to-use functions, efficient and pleasantly smooth LED lights and easy-to-clean grease filters make using the cooker hood easy and pleasant.
Operating functions
The stylish backlit Soft-touch buttons work logically and are pleasant to use. The adjustable timer function ensures that the steam will be removed even after cooking has stopped.
Powerful LED lights illuminate pleasantly and evenly the entire surface below. In addition, the luminaires come standard with a three-stage dimming function and color temperature control, which allows you to adjust the lighting to suit the mood and other lighting around the cooker hood.
NOTE! The grease filter can be washed in the dishwasher (only use the lowest temperature, max 60 degrees).
Installation
The easiness of installation has been taken into ac count when designing the attachment of the new model. The wall mounting strip works with special quick adjustment parts, speeding up the installation considerably. For rooms with high ceilings, an extension part is available that allows the LAPETEK JONA SLIM-X to be installed up to a room height of 302 centimeters. In all maximum room heights, by default, the stove top is 900 mm from the floor and the bottom edge of the kitchen hood is 650 mm from the stove top, i.e. the bottom edge of the kitchen hood is at a height of 1550 mm as seen from the floor. If the kitchen hood is installed at a different height, it also affects the minimum and maximum room heights.
LAPETEK JONA Slim-X cooker hoods are compatible with Vilpen's 230V / 50Hz, top-of-the-line extractor with 1-phase AC / EC motor, or a technically equivalent type of motor. JONA Slim-X hoods are used directly to remove steam forming in the kitchen, as well as for ventilation carried out with a top vacuum cleaner, not for controlling ventilation machines.
Installing the cooker hood is easy and quick to do with clear instructions and installation pictures.
Package contains
- cooker hood - EC-motor - telescopic chimney
Dimensions and technical data
In scope of supply | |
In scope of supply | - cooker hood - EC-motor - telescopic chimney |
Ventilation system | X2-EC - kitchen+bath extraction |
Ventilation system | X2-AC - kitchen+bath extraction |
Cooker hood color | Stainless steel |
Ventilation system | X1-EC - kitchen extraction |
Ventilation system | X1-AC - kitchen extraction |
Ventilation system | X3 - central ventilation |
Ventilation system | X1-EC - keittiöpoisto |
Cooker hood color | Ruostumaton teräs |
Cooker hood width | 60 cm |
Suitable for the room height | 208 - 265 cm |
With the air chimney extension | 255 - 302 cm |
Max. suction power | Riippuu huippuimurista |
Max. Volume level | Riippuu huippuimurista |
Energy class | Riippuu huippuimurista |
Motor power | Riippuu huippuimurista |
Electrical connection | Socket 10 A |
Electrical connection | Pistorasia 10 A |
Lightning | 2 x 3 W / (4000 K) |
Lightning | LED 2 x 3 W / (4000 K) 3-portainen himmennys |
Blast connection diameter | 160 mm |
Switch functions | Kytkintoiminnot Taustavalaistu Soft touch -näppäimistö Valot - päälle / pois - kolmiportainen himmennystoiminto Moottori - perusnopeudet 1-3 (numeronäyttö kertoo valitun nopeuden) - intensiivitoiminto (5 min) - ajastettu sulkeminen (10 - 90 min) |
Minimum installation height | 55 cm for electric stoves |
Minimum installation height | 65 cm for gas stoves |
Minimum installation height | 55 cm sähköliedelle, 65 cm kaasuliedelle |
Fat filter | Washable metal |
Back-pressure valve | Not included in delivery |
Back-pressure valve | Ei sisälly toimitukseen |
Fat filter | Pestävä metalli |
Warranty months | 24 |
